Simple buffer overflow in C Programming Language

• Overview
• Jargon
• Pre-requisite installations
• Exercises
  • Files for exercise
  • Exercise #1: Provide an input big enough to crash the program
  • Exercise #2: Automate to find the size of input big enough for the program to crash
• Challenges
• Quiz

Overview

This tutorial provides a quick overview of how a buffer overflow occurs in C programs when unsafe functions are used.

Jargon

Buffer

Continuous bytes of data / information stored in memory to temporary use

Pre-requisite installations

None

Exercises

Files for exercise

buffovf.c

1
2
3
4
5
6
7
8
9
10
11
12
13

#include <stdio.h>

int main(int argc, char const *argv[])
{
  unsigned char username[16];

  printf("Username:\n");

  scanf("%s", username);

  return 0;
}

Exercise #1: Provide an input big enough to crash the program

Compile buffovf.c using following command. This will generate the binary file with name buffovf.

1
2

gcc -o buffovf buffovf.c --no-stack-protector \
  -mpreferred-stack-boundary=2 -m32 -z execstack

Case 1

Execute the binary file as shown and pass a username with less than 16 bytes. As you see the binary excepts the username and exits sucessfully.

Case 2

Execute the binary file as shown and pass a username with more than 16 bytes. As you see the binary now crashes and throws a segmentation fault.

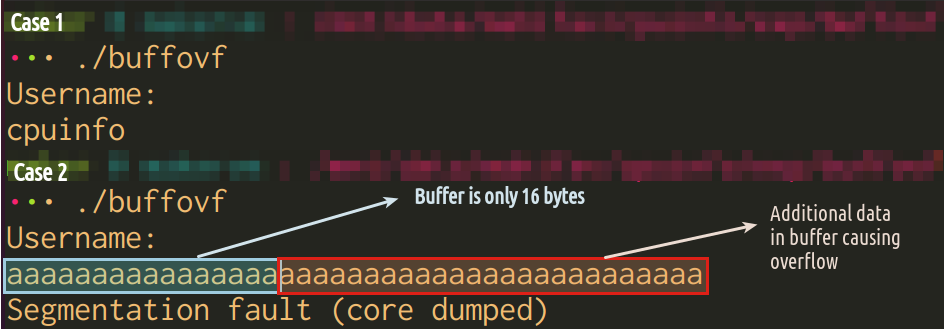

Below snapshot provides insight on the outcome of both cases.

A segmentation fault will occcur when a program attempts to:

1. access a memory location that it is not allowed to access, or
2. access a memory location in a way that is not allowed, for example,
   • attempting to write to a read-only location
   • overwrite part of the operating system

Exercise #2: Automate to find the size of input big enough for the program to crash

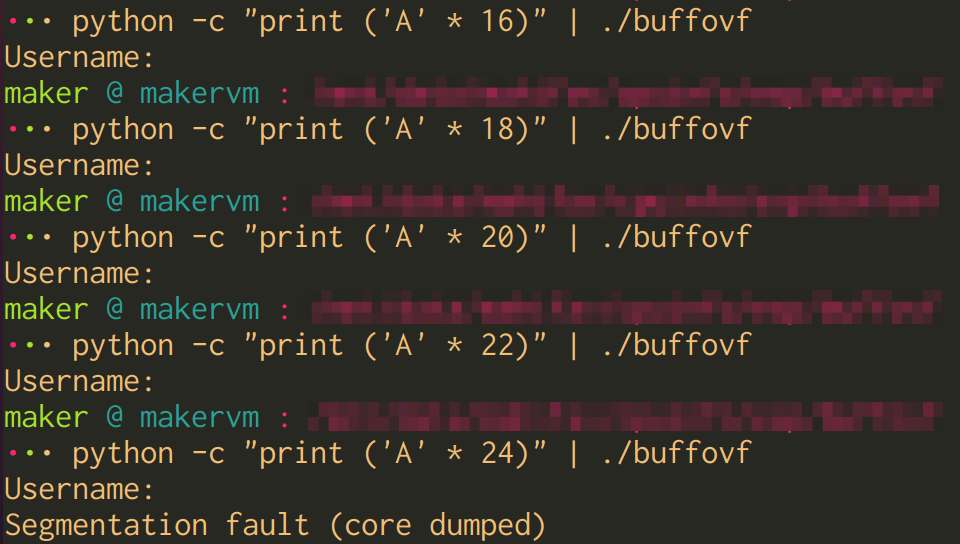

Another easy mechanism to send input data to a binary file is as follows:

1
2
3
4
5
6
7

python -c "print ('a' * 10)" | ./buffovf

python -c "print ('a' * 16)" | ./buffovf
python -c "print ('a' * 18)" | ./buffovf
python -c "print ('a' * 20)" | ./buffovf
python -c "print ('a' * 22)" | ./buffovf
python -c "print ('a' * 24)" | ./buffovf

Note

The buffer username is allocated 16 bytes in the C code. If you observe in the snapshot above, only after 24 bytes of data is sent, the segmentation fault occurs. Analyze the reason on why 8 bytes are additionaly required for a segmentation fault to occur.

Challenges

Quiz

Take a quiz to provide your answers to above challenges
