How a buffer overflow can change the content of a local variable?

• Objectives
• Jargon
• Pre-requisite installations
• Exercises
  • Files for exercise
  • Exercise 1: Overflow the buffer such that the variables in vicinity are in our control
• Conclusion

Objectives

The purpose of this tutorial is to establish the fact that an external input being stored in a buffer can change the contents of another local variable in vicinity.

Jargon

Buffer

Continuous bytes of data / information stored in memory to temporary use

Pre-requisite installations

None

Exercises

Files for exercise

buffovfvar.c

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

#include <stdio.h>
#include <stdlib.h>
#include <string.h>

int main(int argc, char const *argv[])
{
  volatile int flag = 0;
  unsigned char username[16];

  if(argc > 1) {
    strcpy(username, argv[1]);
  } else {
    printf("Usage: buffovfvar username\n");
    exit(EXIT_FAILURE);
  }

  if (flag == 0) {
    printf("Flag is zero: %d\n", flag);
  } else {
    printf("Flag is non-zero: %d\n", flag);
  }
  return 0;
}

1
2

gcc -o buffovfvar buffovfvar.c --no-stack-protector\
 -mpreferred-stack-boundary=2 -m32 -z execstack

Exercise 1: Overflow the buffer such that the variables in vicinity are in our control

After compiling the program bufferovfvar.c, lets execute it with two set of inputs as follows:

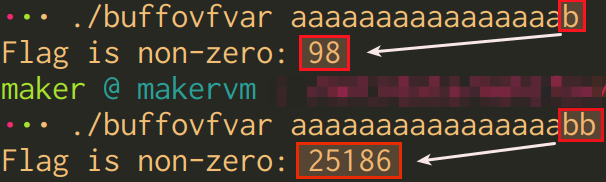

Below is the outcome when the we execute the binary with Input 1 and Input 2

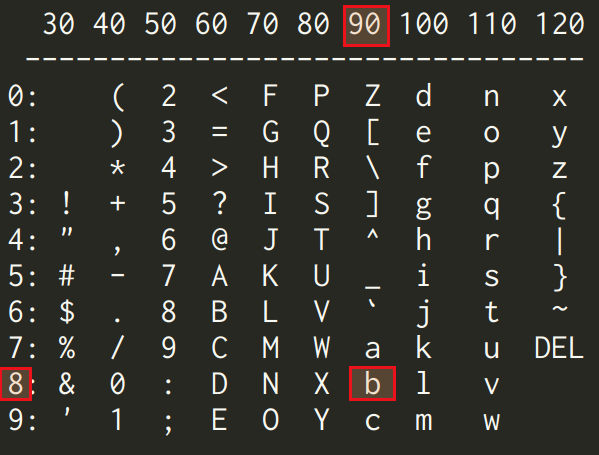

When we give the first Input 1 the flag gets printed as value 98 decimal. The following snapshot validate the results. For quick reference of ascii chart type the following command:

1

man ascii

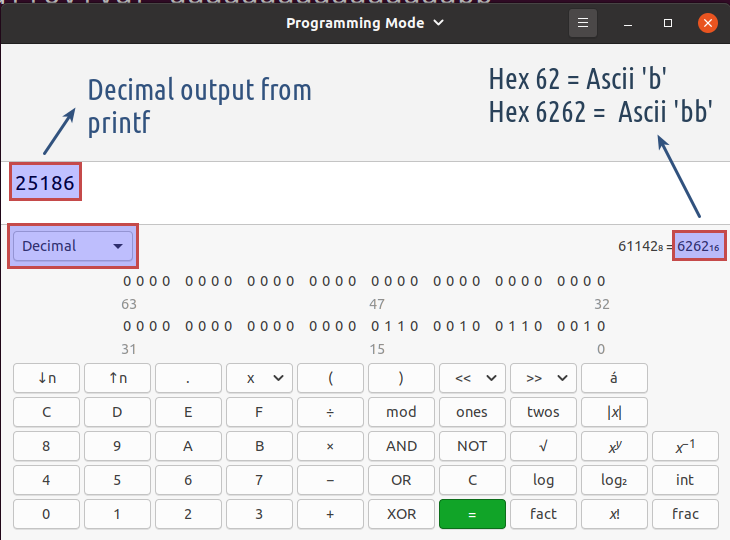

Look at the snapshot below to understand why the flag variable has the decimal value 25186 when we pass the second Input 2 to the binary.

Conclusion

Thus this proves that we are able to control the value of variables in vicinity of our buffer.
